Comforter Quilting Machine | ABM XL6000

The Industry's Best Comforter & Bedspread Quilting Machine

The only quilting machine designed and manufactured in the USA.

 Buy >

ABM International, Inc. manufactures the world's highest production, lowest cost computerized quilting machine. With just one operator, the XL6000 Computer Quilter can produce up to 250 comforters of average design per shift. It features three-axis digital brush less servo control, providing superior quality patterns, ease of pattern and size changes, and low maintenance operation. Utilizing the unique XL6000 Frame Changing Table, one operator stretches and racks a comforter while the machine simultaneously quilts another comforter.

Features & Benefits

• The sewing head – a fully computer controlled quilting system – is capable of sewing any pattern design.
• A color Touch Screen user interface uses a Pentium computer processor allows for user friendly operation.
• The XL6000s carriage-less design eliminates inertia problems and pattern distortion.
• Equipped with a pair of adjustable aluminum frames capable of racking twin though king size comforters and includes ergonomically designed clamps.

Automatic Frame Change Table

• The extremely low maintenance SL7847 Frame changing table pneumatically raises and lowers the frames to create ease of inserting and removal of frames from the quilting machine within 6 seconds.
• Ergonomically designed clamps eliminate operator fatigue and muscle strains.

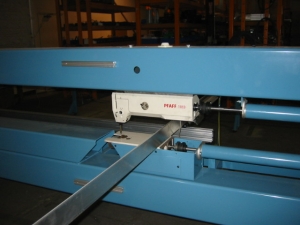

Sewhead Mechanics

• A variety of sewheads are available.
• Available sew speed up to 4,000 SPM.
• X, Y, linear table speeds up to 1,000 IPM
• Standard frame size 96” x 108.”
• Maximum frame size up to 140” x 140.”
• Automatic thread break sensor.
• Automatic backtack at every start and stop during the pattern cycle.
• Automatic thread trimming for tack and jump patterns.

Color Touch Screen Operator Interface

• The XL6000 Features an extremely user-friendly color touch screen operator interace.
• The programming computer is a standard PC using a Windows 10 IoT embedded operating system.
• Standard CAD systems are available for pattern generation.
• A consistent stitch length is produced under all sewing conditions.
• Production data is available.

 Precision Engineered

• The XL6000 is the most cost effective, precision engineered quilting machine available.
• Our expert team of engineers has pent many hours designing and testing the mechanisms utilized on the XL6000 through rigorous stress and strain analysis to manufacture the most efficient, low maintenance, quilting machine available.
• The XL6000s X, Y linear table utilizes a carriage-less design for extremely low inertia.
• Low inertia eliminates pattern distortion typical of conventional quilters and allows the XL6000 to be capable of extremely high speeds.
• Th X, Y linear table is driven by a linear actuator which consists of a steel reinforced polyurethane timing belt. Only minimal maintenance is required an no lubrication is necessary.

 Quality

• ABM International, Inc is a vertically integrated manufacturer with in-house design, programming, welding/fabricating, machining and assembly.
• With over 70 years of experience in manufacturing quilting machines, our highly trained experts staff consistently delivers the quality our customers deserve.

In House Machine Design

• ABM’s highly trained engineering design team anxiously awaits your projects.
• We are available 24 hours a day for customer service, so you can rest well at night!

Technical Data

• Windows 10 Embedded IoT Pentium-based PC
• 128GB Hard Drive
• USB 3.0
• Standard material size up to 96” x 108”
• Standard sewing line 84” x 96”
• Max, material size 140” x 140”
• Max. sewing line 128” x 128”
• Max. axis speed 1,000 IPM
• Max. sewing speed 4,000 SPM
• Machine weight 3,500 lbs.
• 220 Volts Single Phase (Three phase optional), 15 amps
• 100 PSI at 2.5 CFM
• Floor space 16’
• XL6000 w/table 20’ x 28’

Ballistics Quilting Machine | ABM Robo Z

ABM International, Inc. introduces the most advanced quilting technology in the world. With just one operator, the Robot Quilter can quilt up to 220 Kevlar Body Armor Panels per shift. It features a multi-axis Toshiba Robot, providing superior quality patterns, ease of pattern and size changes, and low maintenance operation. One operator places the product on the table and the Robot automatically measures, and manipulates the product while stitching out the required pattern design. This machine can be used to quilt a variety of products besides Kevlar Body Armor. It is proven to quilt boat cushions, seat cushions, airplane, insualtion, engine pads and much more!

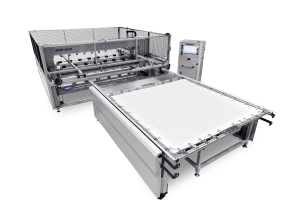

Horizontal Comforter Quilting Machine

ABM ROBO Quilter

• Produce high quality comforters & quilts

• Reduce floor space 50% over conventional quilting machines.

ROBO Quilter H910

Tech Specs

• Size of stroke:
  • With Small Clamps: 102” x 118” | 2600 mm x 3000 mm
  • With Big Clamps: 94” x 110” | 2400 mm x 2800 mm
• Max. Sewing Speed: 3,500 rpm
• Number Of Sewing Heads: 1 (twin heads optional)
• Max. Material Thickness: 4”
• Stitch Length: 6-12 SPI
• Sewing Head Type: Dürkopp Adler 867
• Pneumatic head lift
• Stitch Type: Lockstitch
• Type of Bobbin Dürkopp Adler XXL Dia: 1.25in
• Suggested Needle Size Interval: 110 – 160
• Max. Sewing Speed: 866”/min
• Max. Jumping Speed: 1,000”/min
• Number of Ready Pattern Designs: 1,000+
• Windows 10 IoT
• Pattern generation format: .dxf or .pat
• 5 Axis digital brushless servos
• Multi-Axis Sercos based controller
• 6’ high perimeter safety guarding
• Ansi certified light curtain for front access
• E-top and safety interlocks with safety relay circuits
• Automatic thread break detection
• Pneumatics safety relay
• Automatic lubrication for sewing machine
• Precision machined linear guideways
• Weight: 7,000lbs
• Floor space: 15’ x 20’ (not including loading table)
• Electric: 240 volts three phase, 50 amps, 50/60 htz
• Air: 100 psi, 3.5 c.f.m.
• Automatic Top and Bottom Thread Cutting
• Adjustable height hopping foot
• Adjustable pressure hopping foot
• Different size cup feet
• Adjustable frame loading table
• 24-hour remote assistance
• Spare parts in stock USA
• Installation and training
• Extremely low maintenance
• CE Self Certified

ROBO H510

Size of stroke:

• With Big Clamps: 63” x 110” | 1600 mm x 2800 mm

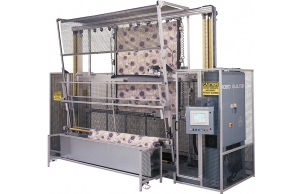

Vertical Comforter Quilting Machine

ABM Robo Quilter

Robo-Quilter Single Needle Quitling Machine

• The world's first fully automatic vertical quilting machine.

• The State of the art Robo Quilter uses only 1/6 of the floor space of a conventional panel quilter.

• Expect to save 80% of floor space.

• Reduce labor cost by 75%.

• Increase production by 25%.

Features & Benefits

• The sewing head is a full computer controlled quilting system capable of sewing any pattern on your product.
• A color touch screen user interface with an advanced computer processor allows for user friendly operation.
• The automatic bobbin changer is complete with two quick-change carousels that hold up to 8 bobbins each. This enable the operator to run multiple machines with less down time wasted during bobbin changes.

Fully Automatic Comforter Loading

• The Robo Quilter is highly automated and the most user-friendly machine available on the market today.
• Designed with the operator’s ergonomic needs in mind, the operator simply attaches the leading edge of the quilt.
• The product automatically indexes into the sewing position.
• The product is measured, and the product gripper mechanisms adjust for seize changes automatically.
• The grippers then automatically grip and stretch the product, preparing it for quilting.
• Due to the machine’s extensive automation, depending upon the pattern, one operator can easily run multiple machines.

Sewhead Mechanics

• Many different sewheads are available.
• Sew speeds reach 4,500 SPM.
• Gantry transport speed reaches 1,000 IPM.
• Standard frame size 120” x 110.”

Completed comforter Load Sequence

• After the product is indexed into the sewing position, the quilt cycle can begin.
• The machine automatically backtacks at the start and finish of the pattern.
• Many different patterns are available – from simple continuous to complex tack and jump.
• When tack and jump is utilized, the Robo Quilter automatically backtacks and thread trims at every start and stop.
• After the sewing cycle, the product is automatically indexed and folded in half so the operator can remove it effortlessly.

Automatic Bobbin Changer

• Robo Quilter is the only machine available with a fully automatic bobbin changer.
• The machine keeps track of the number of products that can be sewn per bobbin.
• Every time a bobbin is fully utilized, the machine will automatically remove and discard the empty bobbin while inserting a new bobbin.
• The changer holds up to 8 bobbins.
• When the carousel is emptied, the operator can quickly and easily replace it with a full one.

Color Touch Screen Operator Interface

• The Robo Quilter is equipped with an extremely user-friendly color touch screen operator interface.
• The programming computer is a standard PC using a Windows 10 IoT embedded operating system.
• Standard CAD systems are available for pattern generation.
• A consistent stitch length is produced under all sewing conditions.
• Production data is available.

Precision Engineered

• ABM’s expert team of engineers has spent many hours designing and testing the mechanisms utilized on the Robo Quilter.
• The Robo’s gantry robot design utilizes precision-machined linear ball bearing guideways for all axis of motion.
• Due to rigorous stress analysis, we’ve created the most advanced and efficient system available today.

 Quality

• ABM International, Inc is a vertically integrated manufacturer with in-house design, programming, welding/fabricating, machining and assembly.
• With over 70 years of experience in manufacturing quilting machines, our highly trained experts staff consistently delivers the quality our customers deserve.

In House Machine Design

• ABM’s highly trained engineering design team anxiously awaits your projects.
• We are available 24 hours a day for customer service, so you can rest well at night!

Technical Data

• Windows 10 Embedded IoT Pentium-based PC
• 128GB Hard Drive
• USB 3.0
• Max, material size 120” x 110”
• Max. sewing line 128” x 128”
• Max. axis speed 1,000 IPM
• Max. sewing speed 4,500 SPM
• Machine weight 10,500 lbs.
• 220 Volts Three phase, 20 amps
• 100 PSI at 2.5 CFM
• Floor space 5’ x 17’
